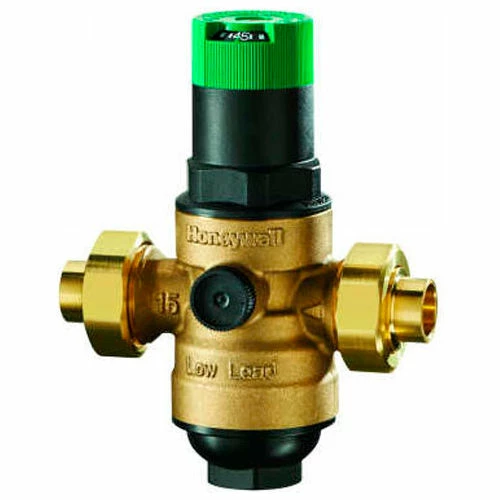

Honeywell 1" DS06 Dialset Low Lead Pressure Regulating Valve – Union Body Only

The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

Features:

• Built-In Dial-Set – no gauge is needed to install or set static pressure.
• Noncorroding Unitized Cartridge – contains all working parts and is easily replaceable
• Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
• Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
• 1/4″ NPT tap accessible from both sides to validate output
• Built in strainer to simplify maintenance
• Approvals – ASSE 1003, IAPMO, CSA, Low Lead Compliant

Specifications:

• Operating Temperature Range: 140 F Maximum
• Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
• Outlet Pressure Adjustment Range: 25-90 PSI
• Max. Inlet Pressure Rating: 250 PSI
• Gauge Tap: 1/4 in. NPT (two, one on each side of body).
• Reducing Ratio: 10:1 Maximum
• Union Fittings: Single-Union Threaded
• Approvals, IAPMO: Listed
