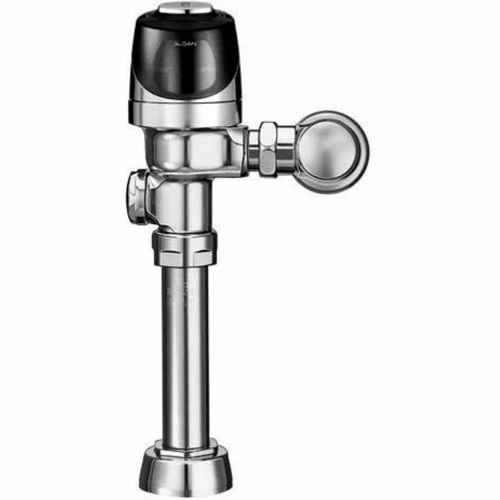

Sloan® G2 Optima Plus® 8110 Water Saver

Sloan® G2 Optima Plus® 8110 Water Saver (3.5 gpf/13.2 Lpf)

Exposed, Battery Powered, Sensor Operated G2® Model Water Closet Flushometer for floor mounted or wall hung top spud bowls. Sloan G2 Optima Plus® Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away. Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases. The G2 Optima Plus Flushometer is provided with an Override Button to allow a “courtesy flush” for individual user comfort. Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for either left or right hand supply with the following features:

PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Flex Tube Diaphragm designed for improved life and reduced
Maintenance

ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic “No Hands” operation

Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection

Latching Solenoid Operator

Engineered Metal Cover with replaceable Lens Window

User friendly three (3) second Flush Delay

Courtesy Flush™ Override Button

Four (4) Size AA Batteries factory installed

“Low Battery” Flashing LED

Infrared Sensor Range Adjustment Screw

Initial Set-up Range Indicator Light (first 10 minutes)

Chrome Plated Metal Handle Cap

1″ I.P.S. Screwdriver Bak-Chek® Angle Stop

Free Spinning, Vandal Resistant Stop Cap

Adjustable Tailpiece

High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut

Spud Coupling and Flange for 1 1/2″ Top Spud

Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange

High Copper, Low Zinc Brass Castings for Dezincification Resistance

Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation

Flush Accuracy Controlled by CID™ Technology

Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX™ Rubber Compound for Chloramine resistance
