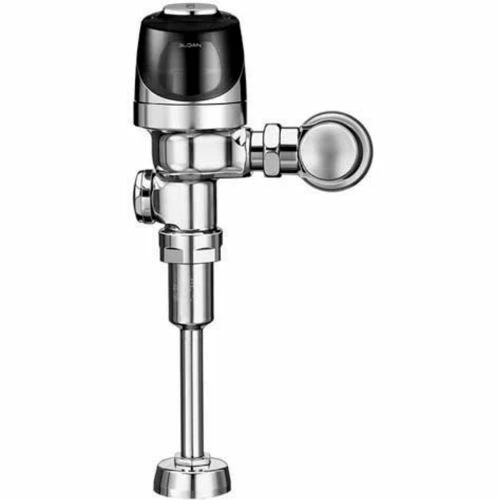

Sloan® G2 Optima Plus® 8186-1 Urinal Sensor Flushometer, Low Consumption 1GPF

Original price was: $534.00.Current price is: $92.99.

SKU: Sloan WB236685 Categories: Flush Valves, Valves Tags: 1 gal/flush, 3250401, Brass, Plumbing & Pumps, Sloan, Top, Urinal, Yes

Experience Quality, Shop with Us
Protect Your Wallet with Safe Payments
Buy with Confidence, Get Quality
Safe Payments for a Better Shopping Experience

Sloan® G2 Optima Plus® 8186- 1 Low Consumption (1.0 gpf/3.8 Lpf)

Exposed, Battery Powered, Sensor Operated G2® Model Urinal Flushometer. Sloan G2 Optima Plus® Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away. Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases. The G2 Optima Plus Flushometer is provided with an Override Button to allow a “courtesy flush” for individual user comfort. Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for
either left or right hand supply with the following features:

PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

Flex Tube Diaphragm designed for improved life and reduced maintenance

ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic “No Hands” operation

Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection

Latching Solenoid Operator

Engineered Metal Cover with replaceable Lens Window

Courtesy Flush™ Override Button

Four (4) Size AA Batteries factory installed

“Low Battery” Flashing LED

Infrared Sensor Range Adjustment Screw

Initial Set-up Range Indicator Light (first 10 minutes)

Chrome Plated Metal Handle Cap

3/4″ I.P.S. Screwdriver Bak-Chek® Angle Stop

Free Spinning, Vandal Resistant Stop Cap

Adjustable Tailpiece

High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut

Spud Coupling and Flange for 3/4″ Top Spud

Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange

High Copper, Low Zinc Brass Castings for Dezincification Resistance

Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation

Flush Accuracy Controlled by CID™ Technology

Diaphragm, Stop Seat and Vacuum Breaker to be molded fromPERMEX™ Rubber Compound for Chloramine resistance

Weight	8.69 lbs
Control Circuit	Solid State, 6 VDC Input, 8 Second Arming Delay, 24 Hour Sentinel Flush
Warranty	36 mo
Sensor Range	Nominal 15" – 30", Adjustable ± 8"
Flush Type	Sensor
Operating Pressure	15 – 100
Liters per Flush	3.8
Sentinel Flush	Once Every 24 Hours After the Last Flush
Series	G2 Optima Plus 8186-1
Color Family	Silver
Battery Life	3 Years @ 4,000 Flushes/Month
Type	Urinal
Tailpiece Size	3/4 in
Battery Type	(4) AA Alkaline
Brand	Sloan
Sensor Type	Active Infrared
Spud Placement	Top
Low Battery Indicator	Yes
Manufacturers Part Number	3250401
Material	Brass
For Use With	Urinal
Gallons per Flush	1 gal/flush
Spud Size	3/4 in
ADA Compliant	Yes
