Exposed Urinal Flushometer, for 3/4″ top spud urinals. Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

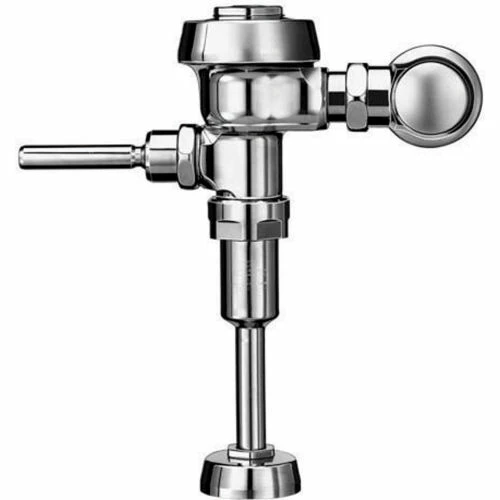

Sloan Royal® Model 186 Water Saver Flushometer
$175.95 Original price was: $175.95.$95.99Current price is: $95.99.
SKU: Sloan WB236681 Categories: Flush Valves, Valves Tags: 1.6 gal/flush, 6, Plumbing & Pumps, Royal 186, Silver, Sloan, Urinal
- Experience Quality, Shop with Us
- Protect Your Wallet with Safe Payments
- Buy with Confidence, Get Quality
- Safe Payments for a Better Shopping Experience

Royal® Model 186 Water Saver (1.5 gpf/5.7 Lpf) Flushometer PERMEXâ„¢ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing 3/4″ I.P.S. Screwdriver Bak-Chek® Angle Stop Free Spinning Vandal Resistant Stop Cap Adjustable Tailpiece High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut Spud Coupling and Flange for 3/4″ Top Spud Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw High Copper, Low Zinc Brass Castings for Dezincification Resistance Non Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation Flush Accuracy Controlled by CIDâ„¢ Technology Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEXâ„¢ Rubber Compound for Chloramine Resistance 100% of the energy used in manufacturing is offset with Renewable Energy Sources Wind Energy
| Weight | 6.75 lbs |
|---|---|
| Material | Semi-Red Brass, PERMEX, Plastic, Rubber., Stainless Steel |
| Warranty | 36 mo |
| Brand | Sloan |
| Spud Placement | Top |
| Installation Type | Exposed Urinal |
| Flush Type | Manual |
| Manufacturers Part Number | 3012600 |
| Style | Water Saver |
| Spud Size | 3/4 in |
| Liters per Flush | 6 |
| For Use With | Urinal |
| Series | Royal 186 |
| Color Family | Silver |
| Type | Urinal |
| Gallons per Flush | 1.6 gal/flush |
| Tailpiece Size | 3/4 in |
| ADA Compliant | Yes |
