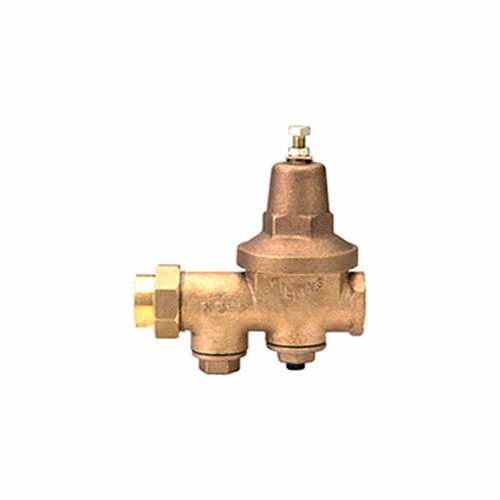

Zurn 1-600XL 1" Pressure Reducing Valve – FNPT Single Union x FNPT – Lead

Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercialwater systems requiring frequent cleaning because of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure causedby thermal expansion. The balanced piston design enables the regulator to react in a smooth and responsive mannerto changes in system flow demand, while at the same time,providing protection from inlet pressure changes.

Standards Compliance

• Max. hot water temp. 140°F @ 100 psi
• Cold water rated temp. 73.4°F @ 400 psi
• ASSE® Listed 1003
• IAPMO® Listed
• CSA® Certified
• City of Los Angeles Approved
• NSF® Listed – Standard 61, Annex G
• Certified to NSF/ANSI 372 by IAPMO R&T
