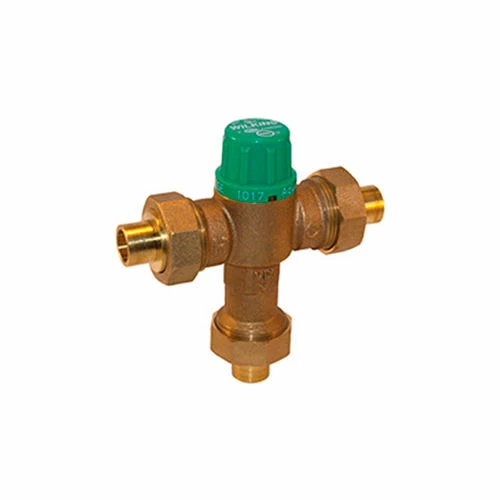

Zurn 12-ZW1017XL 1/2 In. FNPT Thermostatic Mixing Valve – Lead Free Cast Bronze – ASSE1017

The Zurn Wilkins Model ZW1017XL Aqua-Gard® Tempering Mixing Valve, when installed at the hot water source, is designed to mix hot and cold water in order to reduce the temperature of the hot water inthe distribution system to 122°F(50°C) or less. The ZW1017XL’s superior accuracy ensures safe water temperature from minimum to maximum flow rate. Further, multiple end configurations makethis valve suitable for all residential and most light commercial installations.

Features:

• Outlet Temperature Range: 95-131°F(35-55°C)
• Temperature Hot Supply: 120-195°F max. (49-90.5°C)
• Temperature Cold Supply: 40-75°F(4.4-23.8°C)
• Set Temperature Accuracy: +/- 4°F(2°C)

Standard Compliance

• ASSE® Listed 1017
• CSA® Certified
• Certified to NSF/ANSI 372 by IAPMO R&T
• NSF® Listed-Standard 61, Section 9, Annex G
